mplutils.add_abc#

mplutils.add_abc(fig=None, xoffset_pts=2.0, yoffset_pts=-12.0, anchor='top left', labels='a;b;c;d;e;f;g;h;i;j;k;l;m;n;o;p;q;r;s;t;u;v;w;x;y;z', labels_sep=';', pre='(', post=')', start_at=0, rowsfirst=True, **text_kwargs)[source]#

Add labels to all suplots in fig.

By default, adds ‘(a)’, ‘(b)’, … to each subplot in the upper-right corner.

Parameters:

figmatplotlib.figure.Figure, optional

If None, use last active figure.

xoffset_ptsfloat, default: 2.0

Offset in pts from anchor. Positive moves right.

yoffset_ptsfloat, default: -12.0

Offset in pts from anchor. Positive moves up.

anchor{"top left", "top right", "bottom left", "bottom right"}

Specify anchor point of the labels (offsets are relative to this). Refers to the corner of the graph-area of the axes.

labelsstr, optional, default "a;b;c;d; ... ;y;z",

A string of labels, where each label is seperated by labels_sep.

If None, use label of the respective axes (i.e., ax.get_label()).

labels_sepstr, default ";"

Separator used for labels.

prestr, default: "("

String in front of labels.

poststr, default: ")"

String after labels.

start_atint, default: 0

Skip start_at entries in labels. Only applies if labels is not None.

rowsfirstbool, default: True

Label rows first, e.g., “a b c / d e f” instead of “a c e / b d f”. Only applies if labels is not None.

text_kwargs

Additional keyword arguments of matplotlib.text.Text. For a list thereof, see here.

Returns:

text_dictdict[matplotlib.axes.Axes, matplotlib.text.Text]

A dictionary with the axes of fig as keys and the corresponding text instances added by add_abc as values.

Can be used to manipulate the text later (to, e.g., change the color of the text only for certain subplots).

Notes

Cannot handle a fancy matplotlib.gridspec.GridSpec, e.g., where one subplot spans multiple other subplots. If you need one of those, you’re on your own.

Examples

import matplotlib.pyplot as plt
import mplutils as mplu

fig, _ = plt.subplots(2, 3, layout="compressed")
mplu.add_abc()
fig.suptitle("add_abc(): Default")
plt.show()

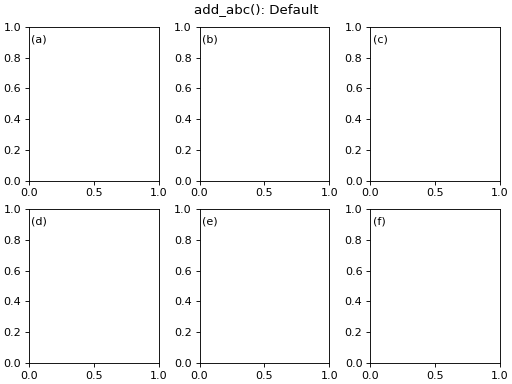

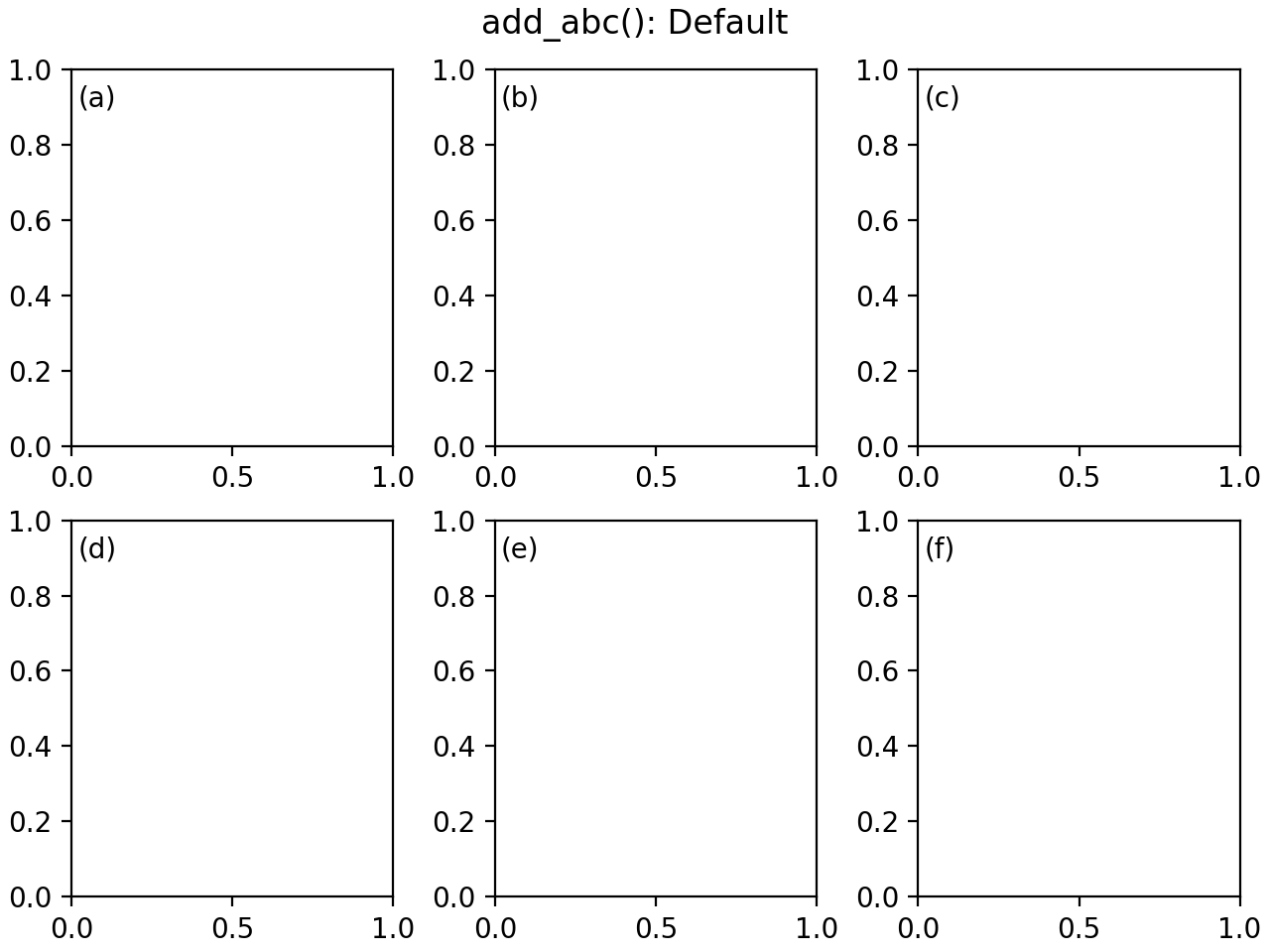

(Source code, png, hires.png, pdf)

import matplotlib.pyplot as plt
import mplutils as mplu

fig, axs = plt.subplots(2, 3, layout="compressed")
fig.suptitle("add_abc(): Different offsets")
mplu.add_abc(xoffset_pts=(5, 15, 20), yoffset_pts=((-12, -15, -18), (-21, -24, -27)))

plt.show()

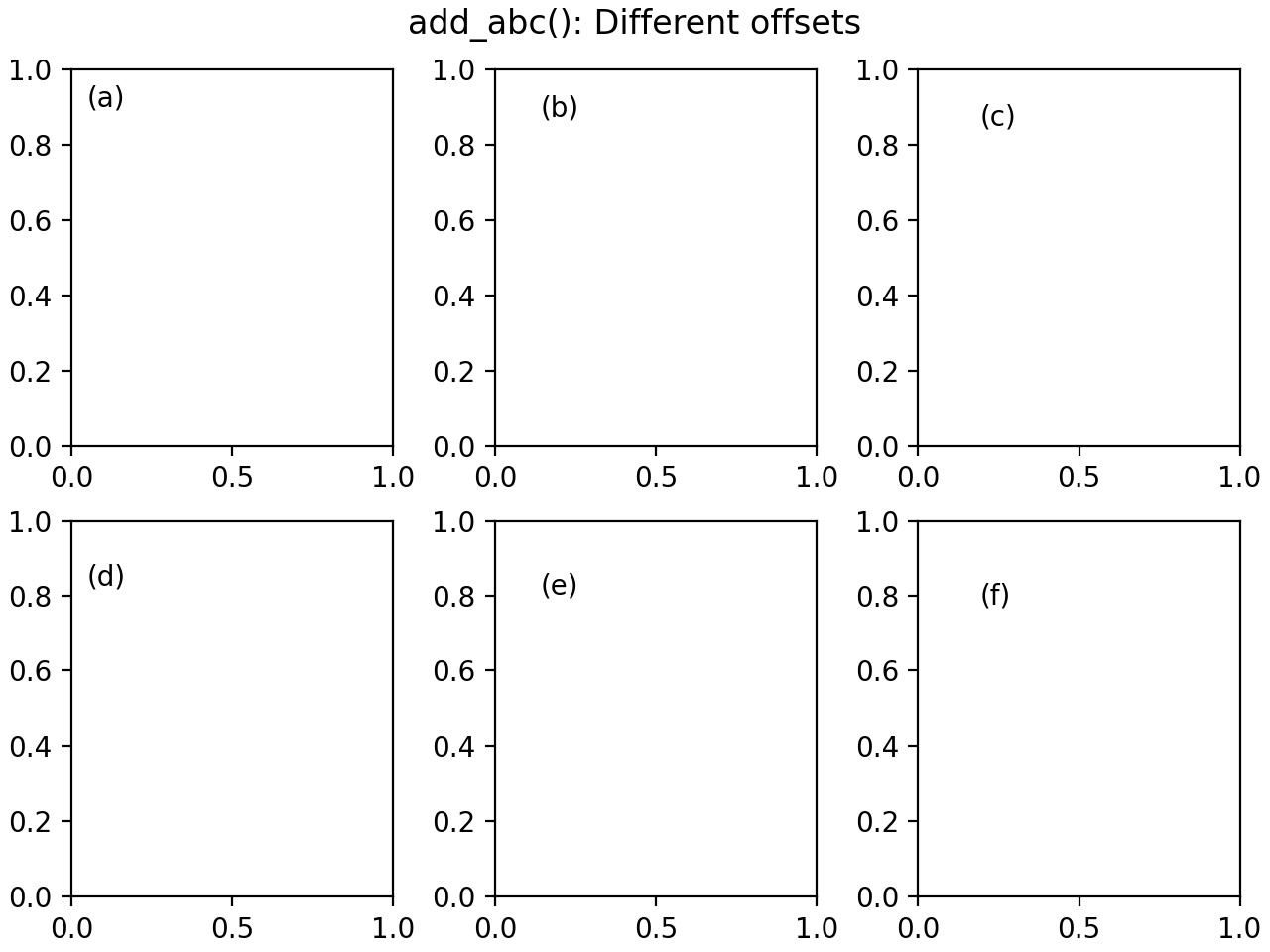

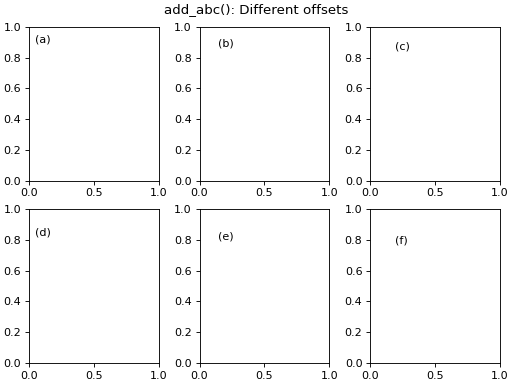

(Source code, png, hires.png, pdf)

import matplotlib.pyplot as plt
import numpy as np
import mplutils as mplu

fig, axs = plt.subplots(2, 3, layout="compressed")

fig.suptitle("add_abc(): Offsets according to margins")

xoffsets = np.empty_like(axs, dtype=float)
yoffsets = np.empty_like(axs, dtype=float)
lim = 1.0

for (i, j), ax in np.ndenumerate(axs):
    ax.set_ylim(0, lim)
    lim *= 10
    margins = mplu.get_axes_margins(ax)
    xoffsets[i, j] = -margins[3] - 5.0
    yoffsets[i, j] = margins[0]

mplu.add_abc(xoffset_pts=xoffsets, yoffset_pts=yoffsets, ha="right", va="top")

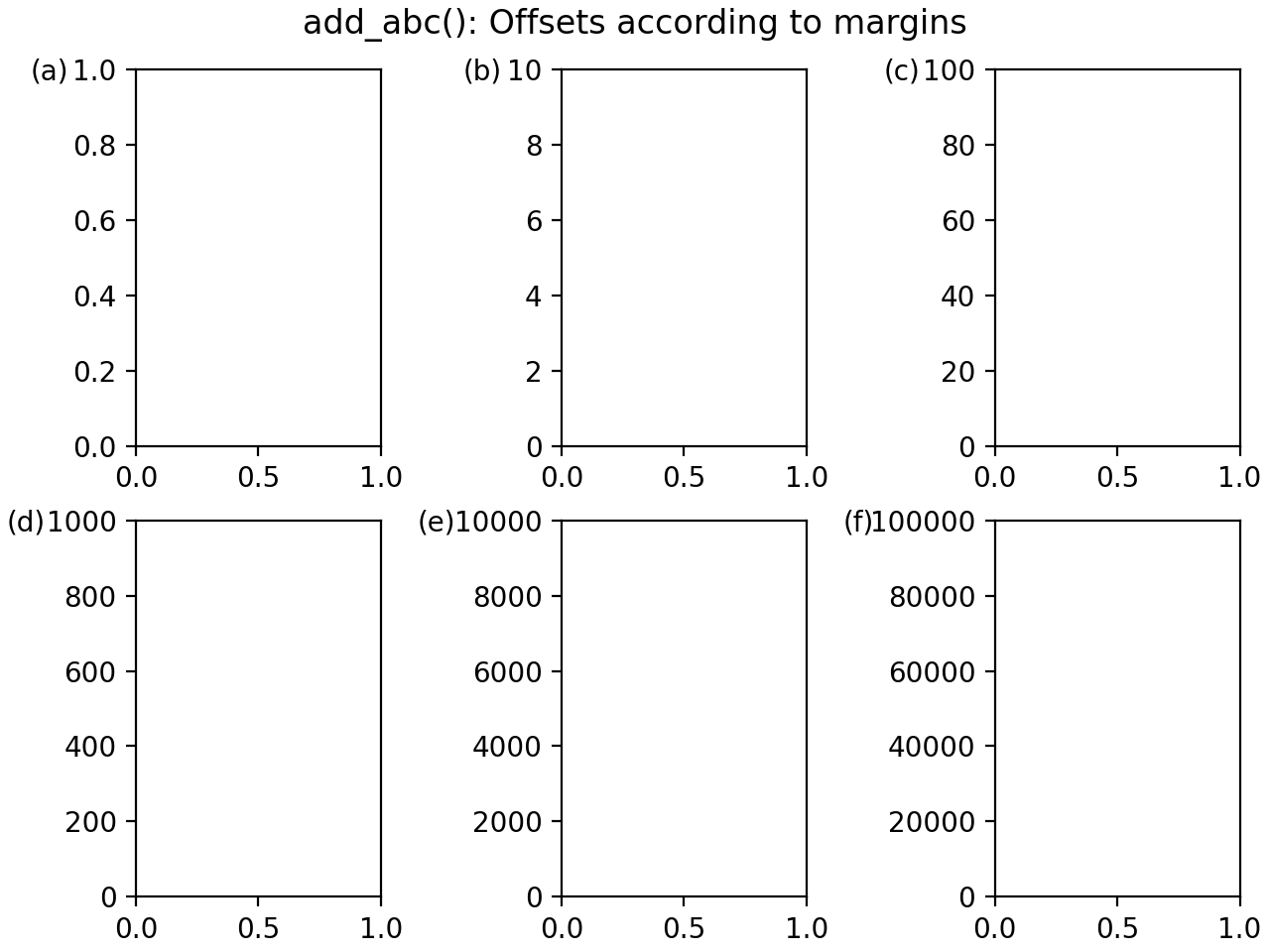

(Source code, png, hires.png, pdf)
